1968 Electronic RS Headlight System
No Vacuum, No Problem |
||||||||
 |
||||||||
|
This electronic conversion kit includes everything needed to make your vacuum headlight doors operate like the factory RS doors but without the need for any RS vacuum components or RS wiring. Simple installation, reliable and the perfect alternative to the original vacuum RS headlight door control system. Installs easily to existing or

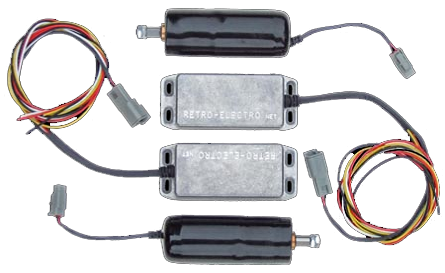

aftermarket headlight assemblies and does not require cutting or fabrication to your car. Consists of two heavy-duty motors with electronic control boxes. Two wires connected to your existing headlight wiring or directly to your headlamp lugs trigger the control circuit to operate the headlight doors as the headlight switch is turned on or off. The wiring is straightforward and contained close to the headlamp with no wires needed to the dash or firewall. Installs completely out of view. Made with the best availbale materials including steel motor cans, steel gears, steel gear cases, CNC machined brackets, premium hardened electronics and weatherproof aluminum enclosures. |
||||||||
 |
||||||||
|

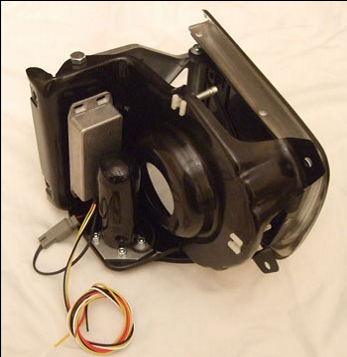

Above shown installed in headlight capsule
|
||||||||
|
Specifications:
Motor: DC, brushed. All metal with steel planetary reduction Electronics: SMT/"Through Hole". Static and surge hardened Voltage Range 11 -16 Vdc Temperature range: 0 - 220 F Current draw: Motor - 5 A max. Electronics - <0.01 A Short Protection: Internal fuse, non serviceable. Wiring: Aviation type, Tefzel/Teflon coated, 16 gauge, 410 F max. |
||||||||
